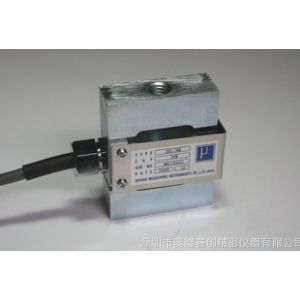

产品简介】  | 称重传感器DBS-日本昭和SHOWA 称重传感器DBS 日本昭和SHOWA称重传感器 传感器 |
【详细说明】Features- High accuracy. High output. For versatile applications.
- Small size. Light weight. Low cost.
- Ensuring high stability through special humidity-proof treatment.
- For both tension and compression applications.
- Applications: Weighing devices in hoppers or packers. testing machines or industrial machines.
- Accuracy Class: 0.05%
Related products:DB... Appearance Dimensions
Model and Capacity / Dimension / etc. (unit : mm)ModelCapacityABCDEFGNatural frequencyWeight | DBS-200N | 200N | 56 | 20 | 60 | 60 | 28 | 28 | M6*1,12 deep | 0.6kHz | 0.3KG | | DBS-500N | 500N | 56 | 20 | 60 | 60 | 28 | 28 | M6*1,12 deep | 1.2kHz | 0.3KG | | DBS-1KN | 1kN | 56 | 20 | 60 | 60 | 28 | 28 | M6*1,12 deep | 1.0kHz | 0.3KG | | DBS-2KN | 2kN | 56 | 20 | 70 | 60 | 28 | 28 | M12*1.75,16 deep | 1.5kHz | 0.35KG | | DBS-5KN | 5kN | 56 | 20 | 70 | 60 | 28 | 28 | M12*1.75,16 deep | 2.7kHz | 0.5KG | | DBS-10KN | 10kN | 56 | 20 | 70 | 60 | 28 | 28 | M12*1.75,16 deep | 2.3kHz | 0.5KG | | DBS-20KN | 20kN | 70 | 25 | 90 | 74 | 33 | 34 | M16*2,20 deep | 2.2kHz | 1.6KG | | DBS-50KN | 50kN | 100 | 38 | 115 | 104 | 46 | 52 | M24*2,24 deep | 2.0kHz | 2.8KG | Specifications| Safe Overload | 150%RC | | Rated Output | 3mV/V±1% | | Nonlinearity | 0.05%RO | | Hysteresis | 0.05%RO | | Repeatability | 0.03%RO | | Excitation Voltage | 12V (or less) | | Safe Excitation Voltage | 20V | | Input Rsistance | 350Ω | | Output Rsistance | 350Ω | | Compensated Temp.Range | -10 to 60℃ | | Safe Temp.Range | -30 to 80℃ | | Temp.Effect on Zero | 0.005%RO/℃ | | Temp.Effect on Output | 0.005%/℃ | | Cable | Φ6mm-4wire shielded cable, length : 5m |
|
